Industrial vacuum cleaner dry explosion-proof vacuum cleaner

Industrial vacuum cleaner dry explosion-proof vacuum cleaner

Industrial vacuum cleaner dry explosion-proof vacuum cleaner
CategoriesDry explosion-proof vacuum cleaner
ModelKGC-30-200;KGC-50-200;KGC-50-400
TypeKGC-30-200
Inspiratory capacity45n/l
Gas consumption14N/L
Materialss304
FOB portTianjin port
Terms of PaymentL/C, T/T
Update Time2021-09-24
Detail Information
Product Description

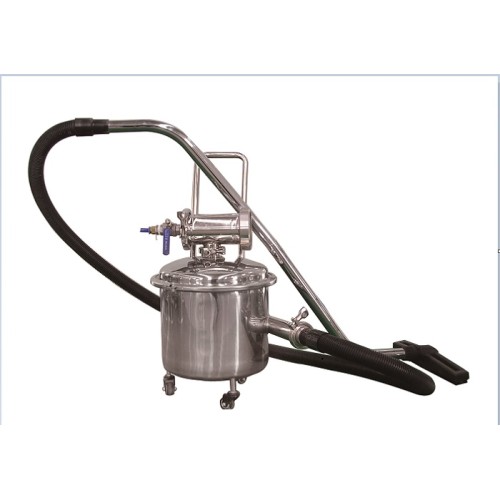

The industrial explosion-proof vacuum cleaner is a new type of vacuum cleaner that meets the requirements of cleanliness and explosion protection.
The vacuum cleaner absorbs dust by a vacuum generated by a jet vacuum pump, and the dust is deposited in a vacuum cleaner through a vacuum line to a closed dust chamber. There is no dust spillover during the whole work process, so as to absorb dust and purify the environment. The power used is a single compressed air, without any electrical components, it is an intrinsically safe vacuuming device. The absorbed dust is deposited in a closed environment and fully meets the high standards for powder explosion protection.
The vacuum cleaner material is made of stainless steel, and the inner and outer mirrors are polished. The main components of the equipment are all fast-loading card-type connection, which is convenient for disassembly and assembly. It is widely used in military, chemical, pharmaceutical, food, experimental and other industries. According to the specific use environment and the characteristics of the dust absorbed, different models can be combined to achieve economical purposes.
Product Specification

Type
Inspiratory capacity
NL/S
Air consumption
NL/S
  Volum
     L

Material
Air pressure diameter
MM

KGC-30-200

45
14
10
SS304
φ12

KGC-50-200

45
14
25
SS304
φ12

KGC-50-400

88
28
25
SS304
φ14
Power source

Degreasing water, compressed air, pressure 0.5-0.65Mpa
