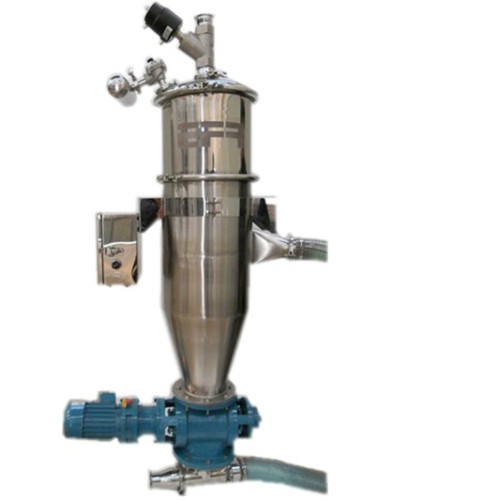

Suction blow composite conveyor

Suction blow composite conveyor

Suction blow composite conveyor
CategoriesSuction blow composite conveyor
ModelEDLCF-36-2;EDLC F-53-4;EDLC F–56-6
Model numberEDLCF-36-2
Discharging caliber150mm
Suction feeding pipe diameterDN40
Conveying distance10-100m
Delivery pressure<0.08MPa
FOB portTianjin port
Terms of PaymentL/C, T/T
Update Time2021-06-20
Detail Information
Product Description
Features
1, Easy to take materials, suitable for low-level, deep or narrow reclaiming points and requirements do not produce dust.

2, Can meet the conditions of several places to a centralized feeding, or several places to concentrate after a centralized and more feeding conditions.

3, Using the Roots blower to do the same power source, while meeting the vacuum and positive pressure power supply, reducing energy consumption and maintenance costs. 4, continuous delivery, easy to control.
Product Specification
Type
Delivery value
T/H
Discharging caliber
mm
Conveying pipe diameter
mm

EDLCF-36-2

0.5-2t/h

150mm

DN40





10-100m

<0.08MPa

EDLC F-53-4

1-3t/h

180 mm

DN50

EDLC F–56-6

2-5t/h

200 mm

DN65

EDLC F-64-8

3-7t/h

220 mm

DN80

EDLCF -66-12

5-10t/h

260 mm

DN80

EDLCF -86-16

8-13 t/h

300 mm

DN100

EDLCF -116-20

11-20 t/h

340 mm

DN100

EDLCF -136-26

15-25 t/h

400 mm

DN125

EDLCF -166-40

20-40t/h

500 mm

DN125
Detail Images
Company Information
After years of unremitting efforts, the company has promoted powder material conveying technology to many fields such as pharmaceutical, food, chemical, etc., through a large number of powder conveying test and a variety of material transport cases, in the powder material transport process has The unique advantage can meet the various transportation needs of different customers, help customers to improve the process, improve the quality and efficiency of the company's products, and is recognized by the company and praised by customers.
Based on the principle of “customer first, honesty and technology first”, the company can solve your technical problems and guarantee the world advanced and reliable equipment. We sincerely hope to cooperate with you.
