Dilute phase positive pressure conveyor

Dilute phase positive pressure conveyor

Dilute phase positive pressure conveyor
CategoriesDilute phase positive pressure conveyor
ModelEDLF-2;EDLF-4;EDLF-6
Model numberEDLF-2
Deliver value0.5-2t/h
Suction feeding pipe diameterDN40
Conveying distance10-120m
Delivery pressure<0.06MPa
FOB portTianjin port
Terms of PaymentL/C, T/T
Update Time2021-06-20
Detail Information
Product Description
Dilute phase positive pressure conveying, using Roots blower as the conveying power, the air closing device controls the amount of material entering the conveying pipeline, the material is transported to the destination by pipeline, the material is transported in the pipeline at a higher speed in a dispersed state, and the gas is discharged through the filter. Suitable for one-to-many conveying conditions.

Features
1. Use high-efficiency separation dust filter to meet the dust removal of high dust atmosphere and improve                transportation efficiency.

2. The air closing device can be used as the discharge valve at the same position to effectively control the dust in the     relatively open environment.

3. Introduce the discharge position exhaust into the inlet end of the Roots blower to form a gas closed-circuit conveying system. The inert protective gas such as nitrogen can be used to transport the materials required by special physical and chemical requirements.
Product Specification
Type
Delivery value
T/H
Conveying pipe diameter
mm

EDLF-2

0.5-2t/h

DN40





10-120m

<0.06MPa

EDLF-4

1-3t/h

DN50

EDLF-6

2-5t/h

DN65

EDLF-8

3-8t/h

DN80

EDLF-12

5-12t/h

DN80

EDLF-16

7-18 t/h

DN100

EDLF-20

10-25 t/h

DN100

EDLF-26

15-30 t/h

DN125

EDLF-40

20-45t/h

DN125

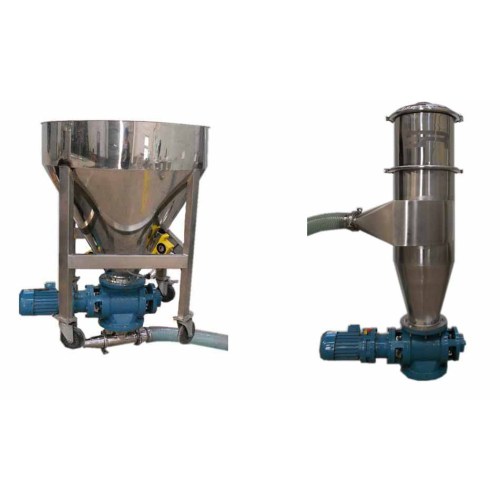

Detail Images
Company Information
After years of unremitting efforts, the company has promoted powder material conveying technology to many fields such as pharmaceutical, food, chemical, etc., through a large number of powder conveying test and a variety of material transport cases, in the powder material transport process has The unique advantage can meet the various transportation needs of different customers, help customers to improve the process, improve the quality and efficiency of the company's products, and is recognized by the company and praised by customers.
Based on the principle of “customer first, honesty and technology first”, the company can solve your technical problems and guarantee the world advanced and reliable equipment. We sincerely hope to cooperate with you.
