Home / Products / Positive pressure conveyor / Dense phase positive pressure conveyor /

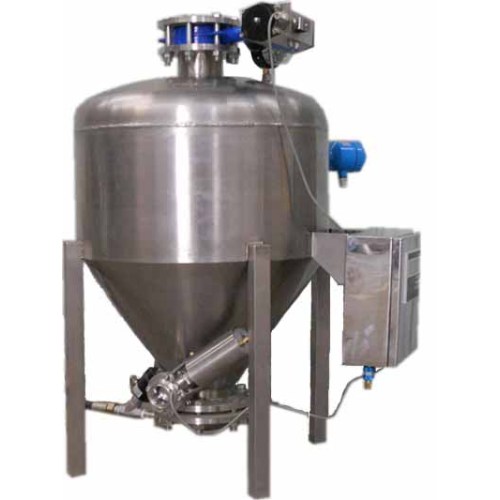

Positive pressure conveyor dense phase positive pressure conveyor

Positive pressure conveyor dense phase positive pressure conveyor

Positive pressure conveyor dense phase positive pressure conveyor
Positive pressure conveyor dense phase positive pressure conveyorPositive pressure conveyor dense phase positive pressure conveyorPositive pressure conveyor dense phase positive pressure conveyor
CategoriesDense phase positive pressure conveyor
ModelEDM-50;EDM-65;EDM-80
Model numberEDM-50
Deliver value1-5t/h
Conveying pipe diameterDN40-DN50
Conveying distance60-300m
Delivery pressure0.2-0.5MPa
FOB portTianjin port
Terms of PaymentL/C, T/T
Update Time2021-09-24
Detail Information
Product Description
Dense phase positive pressure conveying, using Roots blower and air compressor as the conveying power, the material is transported in the pipeline at a lower speed, dune state, fluidized or agglomerated state; suitable for materials with long distance and large conveying capacity Conveying the operating point.

Features
1. Due to the high density of the transported material and low moving speed, the pipe wear and material breakage rate        can be effectively reduced.
2. Due to the small amount of gas required, the end separation filter size model is reduced.
3. Intermittent delivery, can not achieve continuous feeding.
4. Compressed air requirements can not contain water, otherwise it is easy to stick to blockage.
Product Specification
Type
Delivery value
T/H
Conveying pipe diameter
mm

EDM-50

1-5t/h

DN40-DN50









60-300m

0.2-0.5MPa

EDM-65

3-10t/h

DN50-DN65

EDM-80

5-15t/h

DN65-DN80

EDM-100

8-18t/h

DN80

EDM-120

10-25t/h

DN80-DN100

EDM-150

15-35t/h

DN100

 Dense phase positive pressure conveyor
 Dense phase positive pressure conveyor
 Dense phase positive pressure conveyor
Detail Images
Company Information
After years of unremitting efforts, the company has promoted powder material conveying technology to many fields such as pharmaceutical, food, chemical, etc., through a large number of powder conveying test and a variety of material transport cases, in the powder material transport process has The unique advantage can meet the various transportation needs of different customers, help customers to improve the process, improve the quality and efficiency of the company's products, and is recognized by the company and praised by customers.
Based on the principle of “customer first, honesty and technology first”, the company can solve your technical problems and guarantee the world advanced and reliable equipment. We sincerely hope to cooperate with you.
