Jet pump vacuum conveyor

Jet pump vacuum conveyor

Jet pump vacuum conveyor
Jet pump vacuum conveyorJet pump vacuum conveyorJet pump vacuum conveyorJet pump vacuum conveyor
CategoriesJet pump vacuum conveyor
ModelEVC-20-2-200;EVC-20-4-200;EVC-30-2-200
Model numberEVC-20-2-200
Overall Dimensionsφ250X680mm
Weight26kg
Deliver value0.1~0.5
Suction feeding pipe diameter32/38mm
Maximum gas consumption15
FOB portTianjin port
Terms of PaymentL/C, T/T
Update Time2021-09-24
Detail Information
Product Description

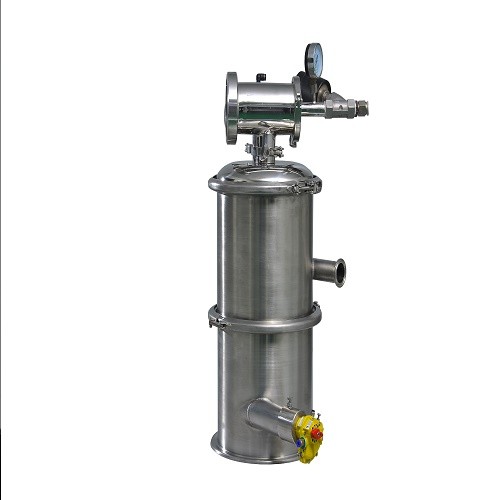

The jet pump vacuum conveyor adopts a single compressed air as the power source. The whole machine does not need electricity. It is an intrinsically safe explosion-proof equipment, which can be used to transport flammable and explosive materials in the case of high explosion-proof requirements. At the same time, because of the use of compressed air, the installation is simple, and the maintenance and maintenance are quite convenient.
Product Specification
Type
Overall dimension
mm
Weight
kg
Delivery value
T/H
Suction feeding pipe diameter
mm
Maximum gas consumption
NL/S

EVC-20-2-200

φ250X680

26

0.1~0.5

32/38

15

EVC-20-4-200

φ250X910

33

0.2~1.5

38/51

15

EVC-30-2-200

φ320X800

35

0.5~2

38/51

15

EVC-30-4-400

φ320X1110

41

0.8~3

51

29

EVC-30-6-800

φ320X1370

48

1.5~4

51/63

44

EVC-45-4-800

φ450X1400

55

2~6

63/76

44

EVC-F-45-4-1000

φ450X1400

90

2.5-8

76

66

EVC-45-6-1000

φ450X1400

64

3~10

76

66

EVC-F-45-6-1200

φ450X1600

100

4~12

76

88

EVC-63-4-1200

φ450X1600

160

5~12

76

88

EVC-63-6-1600

φ650X1840

200

8~22

89/102

115
